API 6A Expanding Gate Valves
API 6A Expanding gate valve is designed for mainly used in the thermal recovery wellhead,prodcution trees and manifolds. which is super high temperature （upto Class Y according to API 6A) working condition. it's strictly designed and manufacturing according to API 6A,API 6D and NACE MR-0175 latest edition.
Feature:
- 1. Forged Body & Bonnet,
- 2. Metal-to-metal body/bonnet seal.
- 3. Low operation torque.
- 4. Gate guides retain body lubricants and protect gate surface.
Avalaible Specication
| Bore Size | 2 1/16” – 4 1/16” |
| Working Pressure | 2,000psi – 5,000psi |
| Material Class | AA - HH |
| Working Temperature | X,Y |
| PSL | 1 - 4 |
| PR | 1 - 2 |
 |
 |

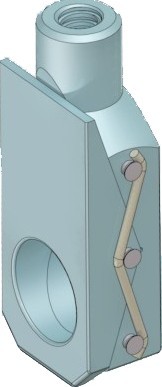

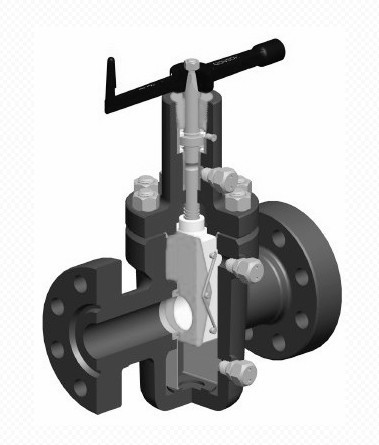

| Expanding Gate Valve Drawing | Gate for expanding gate valve |
