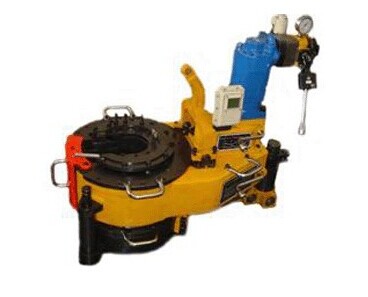

Hydraulic Tubing tong - Tubing Power Tong
Hydraulic tubing tong - tubing power tong is a wellhead handling tool which is using for handle tubing,they are avalaible in variety of models, sizes and types, the hydraulic tong is equipped with hydraulic backup tong and use inner curved cam to clamp.
Available Specification
| Model | Applicable pipe diameter | Max Torque (KN.M) | Hydraulic | Tong Head Speed (rpm) | ||||||
| mm | inch | high gear | mid gear | low gear | Pressure (Mpa) |
Flow (L/min) |
high gear | mid gear | low gear | |
| TQ178-16 | 101.6-178 | 4-7 | 2.4-3 | / | 14.5-17.5 | 18 | 110-160 | 54-97 | / | 9-13.1 |
| TQ178-16Y | 101.6-178 | 4-7 | 2.4-3 | / | 15-18 | 18 | 110-160 | 54-79 | / | 9-13 |
| TQ340-20A | 101.6-340 | 4-13 3/8 | 3.7 | / | 15-20 | 16 | 110-160 | 50-80 | / | 6-14 |
| TQ340-35 | 114.3-340 | 4 1/2-13 3/8 | 2.5-3 | 6.0-7.5 | 32-40 | 18 | 110-160 | 60-86 | 21-30 | 2.6-5.3 |
| TQ340-35A | 114.3-340 | 4-13 3/8 | 4.0-5.0 | / | 27-30 | 18 | 110-160 | 80-98 | / | 12-16 |
| TQ340-35Y | 114.3-340 | 4 1/2-13 3/8 | 4.0-5.6 | / | 26-35.2 | 21 | 110-170 | 57-95 | / | 9-15 |
| TQ340-50 | 114.3-340 | 5 1/2-13 3/8 | 3.4-4.5 | 11 | 44-56 | 17.2 | 110-200 | 52-75 | 27.4 | 4.2-6 |
| TQ356-55 | 114.3-356 | 4 1/2-14 | 3.4-4.5 | / | 45-57.4 | 16.6 | 110-160 | 52-76 | / | 3.9-5.6 |
| TQ508-70Y | 244.5-508 | 9 5/8-20 | 8.4-10.7 | / | 48.9-70.5 | 20 | 110-170 | 26-43.6 | / | 4-6.6 |
