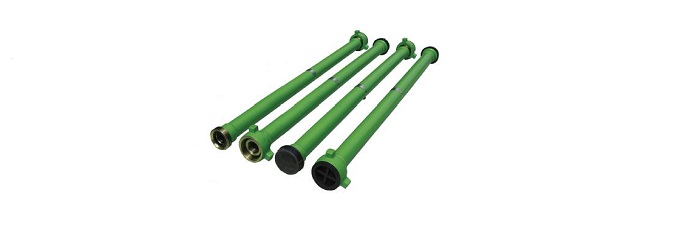

Treating iron - Pup Joint - Chiksan Pup Joint

Pup Joint (compatible with FMC Chiksan Pup Joint) is a pipe line with thread, flange or union connectors on both ends, we can provide various pup joint for high,low pressure and temperature and H2S environment, with size range from 2" - 4" and working pressure range from 3,000psi - 15,000psi. all of them are strictly desined, manufactured and tested according to API 16C, Q1 and NACE 0175, both pressure thread seal straight pipe and non-pressure thread seal pup joint are available.

Pressure thread seal pup joint
Non-pressure thread seal pup joint

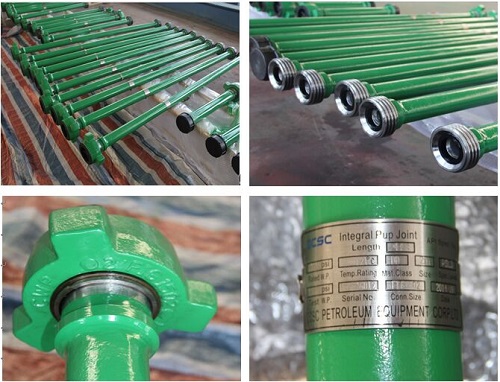

CCSC Pup joints feature:

• 1. Integral pup joints made from one forged raw pipe.
• 2. Flanged end is also available for high pressure pipeline.
• 3. ACME thread is adopted in Weco wing union.
• 4. Standard service is used up to 15,000psi and tested at 22,500psi.
• 5. H2S service is used up to 10,000psi and tested at 15,000ps.

Note:Customer's inquiry information shall include size,working pressure,lenght,connection type,and working condition(H2S).
