Drill Pipe Elevator

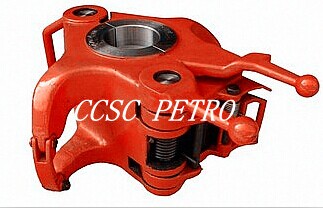

DDZ center latch elevator is design for handling 18° taper drill pipe, drill tools and etc, the elevator is designed and manufactured in according with API 8C, we stock and sell some drill pipe elevators to suit different application, all of them are API certified, MPI test and load tested.
Available Specication
| Model | Drill Pipe Size | Elevator Bores | Elevator Sign | Max Load /Ton (KN) |
| DDZ 67 | 2 3/8" EU | 67 mm | 2 3/8 EU | 100 (890) 150 (1334) 250 (2224) 350 (3114) 500 (4448) |
| DDZ 83 | 2 7/8" EU | 83 mm | 2 7/8 EU | |
| DDZ 101 | 3 1/2" EU | 101 mm | 3 1/2 EU | |
| DDZ 109 | 4" IU | 109 mm | 4 IU | |
| DDZ 121 | 4" EU | 121 mm | 4 EU | |
| 4 1/2"IU | 4 1/2 IU | |||
| 4 1/2"EU | 4 1/2 EU | |||
| DDZ 133 | 4 1/2"EU | 133 mm | 4 1/2 EU | |
| 5" IEU | 5 IEU | |||
| DDZ 148 | 5 1/2" IEU | 148 mm | 5 1/2 IEU | |
| DDZ 159 | 5 7/8" IEU | 159 mm | 5 7/8 IEU | |
| DDZ 179 | 6 5/8" IEU | 179 mm | 6 5/8 IEU |
