Adjustable Choke - Adjustable choke valve

Adjustable choke is used to control the flow rate of fluids for a broad range of application, including well testing, wellheads, stream injection, choke manifold and well clean operation, etc., our adjustable choke valve is improved from Cameron H2 series adjustable choke, which is designed and manufactured in accordance with API 6A and API 16C standard, easy operation and simple maintain, reasonable price.

CCSC adjustable choke is made of forged alloy steel body, stainless steel and tungsten carbide parts, they are interchangeable with major brands in the markets, such as Cameron, FMC, Anson, etc.

Feature:

• Manufactured and tested in accordance with API 6A.
• Carbide alloy is embedded into stem needle of valve, seat.
• Flow adjustment is indicated on a measuring scale.
• Composite rubber-plastic stem lip packing reduces operating torque.
• Max orifice:1"-3".

Avalaible Specification

• Bore Size: 2 - 4 inch
• Working Pressure: 2,000PSI - 20,000PSI
• Material Class: AA - EE
• Connection Type: Flange, Hammer Union, Thread

Inquiry information

Customers may customize their purchase through the following data:

• Working Pressure
• Type of Connection
• Bore size and Max. Orifice
• Material Class

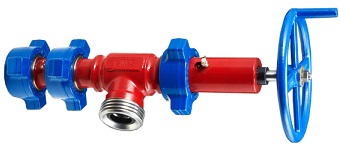

See below adjustable choke tee with hammer unnion connection:
