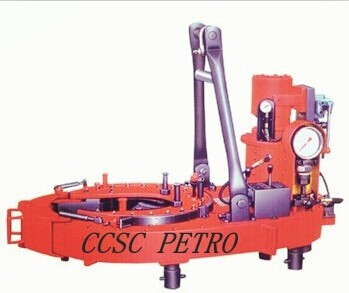

Hydraulic casing tong - Casing Power Tong
Hydraulic casing tong - casing power tong is a wellhead handling tool which is using for quick and safe making up and breaking out of casing,they are strictly designed and manufactured in according with API 7K,size ranges available to meet your casing size.
Available Specification
| Model | Applicable pipe diameter | Max Torque (KN.M) | Hydraulic | Tong Head Speed (rpm) | ||||||
| mm | inch | high gear | mid gear | low gear | Pressure (Mpa) |
Flow (L/min) |
high gear | mid gear | low gear | |
| TQ178-16 | 101.6-178 | 4-7 | 2.4-3 | / | 14.5-17.5 | 18 | 110-160 | 54-97 | / | 9-13.1 |
| TQ178-16Y | 101.6-178 | 4-7 | 2.4-3 | / | 15-18 | 18 | 110-160 | 54-79 | / | 9-13 |
| TQ340-20A | 101.6-340 | 4-13 3/8 | 3.7 | / | 15-20 | 16 | 110-160 | 50-80 | / | 6-14 |
| TQ340-35 | 114.3-340 | 4 1/2-13 3/8 | 2.5-3 | 6.0-7.5 | 32-40 | 18 | 110-160 | 60-86 | 21-30 | 2.6-5.3 |
| TQ340-35A | 114.3-340 | 4-13 3/8 | 4.0-5.0 | / | 27-30 | 18 | 110-160 | 80-98 | / | 12-16 |
| TQ340-35Y | 114.3-340 | 4 1/2-13 3/8 | 4.0-5.6 | / | 26-35.2 | 21 | 110-170 | 57-95 | / | 9-15 |
| TQ340-50 | 114.3-340 | 5 1/2-13 3/8 | 3.4-4.5 | 11 | 44-56 | 17.2 | 110-200 | 52-75 | 27.4 | 4.2-6 |
| TQ356-55 | 114.3-356 | 4 1/2-14 | 3.4-4.5 | / | 45-57.4 | 16.6 | 110-160 | 52-76 | / | 3.9-5.6 |
| TQ508-70Y | 244.5-508 | 9 5/8-20 | 8.4-10.7 | / | 48.9-70.5 | 20 | 110-170 | 26-43.6 | / | 4-6.6 |
