BOP TEST STUMP - BOP TEST STAND
Blow Out Preventer (BOP) test stumps are often used for manufacturers to test their BOP or drillers testing operations at off-shore and on-shore drilling rig. BOP TEST STUMP is designed and manufactured in accordance with API 6A or API 16A standard.we provide all sizes and pressure ratings BOP TEST STUMP used for BOP test.
A BOP test stump may have base plate, side and bottom ports, and fixed or removable Test mandrel retaining threads.

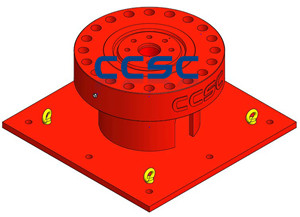

Model A
• On base plate .
• With test ports &drain port.
• Fixed mandrel retaining thread.

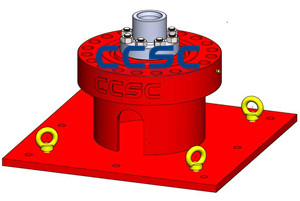

Model B
• On base plate .
• With test ports &drain port.
• Changeable mandrel retaining threads.

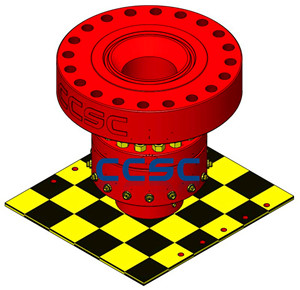

Model C
• On base plate .
• With test ports and view port.
• Fixed mandrel retaining thread.
• Fast lock connector and bop x-overs.
Model D
• Test safety valves, IBOP's, Gray valves, Kelly cocks or any drill string sub.
• Suitable for most rotary shouldered connections.
• Adapter subs to suit different sizes and connections of drill string subs.
Basic material of construction is alloy steel. For corrosion resistance, we can overlay 316 SS or Inconel 625 on the ring groove to improve product life if required.CCSC's customizable BOP TEST STUMP allow customers to design their ideal product for reliable and consistent performance.
