Plug Catcher-Ball Catcher
Plug catcher-ball catcher is the equipment often used on the oilfield when drilling,well testing and fracturing work. the Plug catcher is strictly designed and manufacturing as per API 6A and used to catch and retain chunks from drilled plugs,

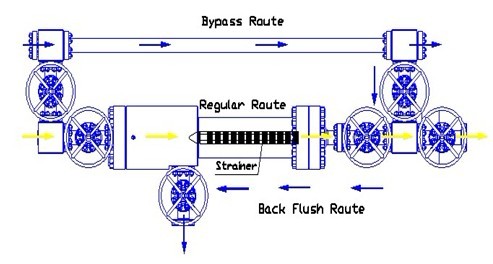

Our general plug catcher are skid mounted for easy transportation,c/w a bypass loop which is able to back flush and dunp chunks, CCSC's customizable plug catcher allows customers to design their ideal plug catcher system for reliable and consistent performance on their site.
Available Specification
• Pressure Rating: 15,000 PSI
• Material Class : AA-EE
• Product Specification Level: 1-4
• Performance Requirements: 1-2
• 2”15K CAMERON FC type GATE VALVE for high pressure performance
• Catch chamber size: 7 1/16” I.D. x 8’ long
• Effective Strainer size: 4” O.D. x 5’ Long
