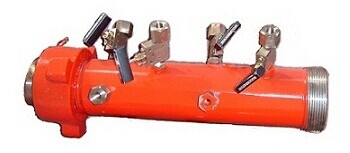

Data Header - Well Testing Data Header
Data header is located directly upstream of the choke manifold and downstream of the surface safety valve (SSV) and provides access to the flow stream for pressure and temperature data acquisition, produced fluid sampling, and chemical injection. Supplied with hammer unions as standard, the data header can have hub-type connections.
• Flexibility for testing and cleanup operations
• Check and needle valves can be configured to meet blocking and bleed functionality requirement
• Designed and manufactured in according with API-6A (PSL-2 or -3, PR2) and H2S (NACE† MR0175)
Data Header Feature
• Ports provided for fluid sampling, wellhead-pressure recording,and chemical injection.• Flexibility for testing and cleanup operations
• Check and needle valves can be configured to meet blocking and bleed functionality requirement
• Designed and manufactured in according with API-6A (PSL-2 or -3, PR2) and H2S (NACE† MR0175)
Avalability Specification
| Working pressure | 2000PSI-20000PSI |
| Working medium | oil,natural gas,mud |
| Working temperature | -46℃-121℃（L-U） |
| Material class | AA –HH |
| Specification class | PSL1-PSL4 |
| Performance class | PR1, PR2 |
| Connection | API 6A Flange, API 16A Clamp, Weco Union |
| No. of Ports | 4 - 6 |
Data Header inquiry information
Customers may customize their purchase through the following data:
• Working Pressure
• Nominal Size
• Type of Connection
• Length
• No.and type of port
