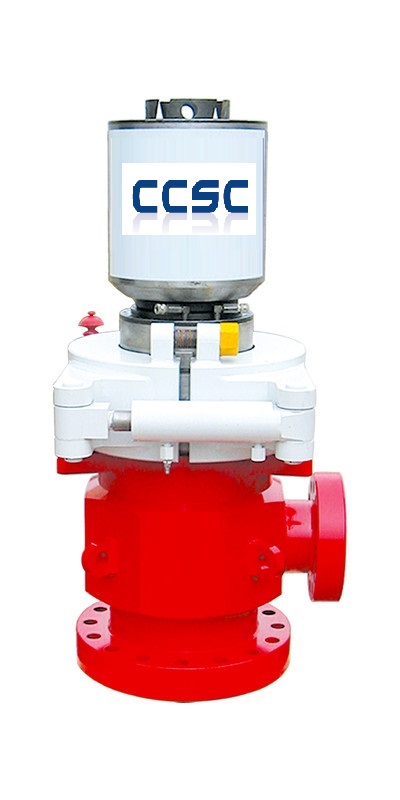

Rotating Control Device

Rotating Control Device provided by CCSC is for managed pressure drilling, such as leakage drilling, release of low pressure reservoir, pneumatic drilling, workover and other operations, the RCD is strictly designed and manufactured according to API 16C RCD and API Spec Q1 by forged AISI 4130/4140 low alloy or AISI 410 SS steel.

CCSC Rotating Control Device' feature:

• 1. Reliable Sealing, long service life, easy to replace the sealing element and rotating assembly.
• 2. Easy maintenance.
• 3. Rotating assembly can be removed as one piece to improve the work efficiency.
• 4. Dual and single stripper rubber element sealings are available.

RCD Application:

• 1. Managed pressure drilling, air drilling.
• 2. Pressurized mud-cap drilling.
• 3. Constant bottom hole pressure.
• 4. Returns flow control.
• 5. Underbalanced drilling
• 6. Some other special operation

Avalaible Specication:

• Model: CCSCXK35/197-17.5/35
• Norminal size: 13 5/8"
• Bottom connection: 13 5/8" 5000PSI Flange
• Side inlet connection: 2 1/16" 5000PSI Flange
• Side ourlet connection: 7 1/16" 5000PSI Flange
• Maximum dynamic pressure: 2538PSI @ 100RPM
• Maximum static pressure: 5000PSI
