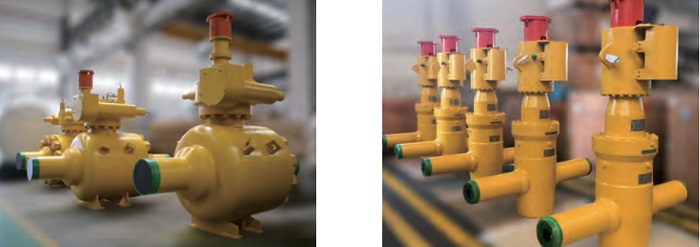

Sunsea Ball Valve - Subsea Gate Vavle

Subsea ball valves - subsea gate valves are designed for high integrity sealing and trouble-free operation, typically for harsh environments common in the offshore oil and gas industry.has strict requirements on the quality, performance and reliability of the subsea valves and the valve service life is generally over 20 years.

Features

• Metal tp metal seats
• Prolonged life soft seals
• Metal Ring Joints
• Multi-seal Stem Sealing
• The linear tye driving device
• ISO 13628-8 ROV Interface
• Cathodic protection

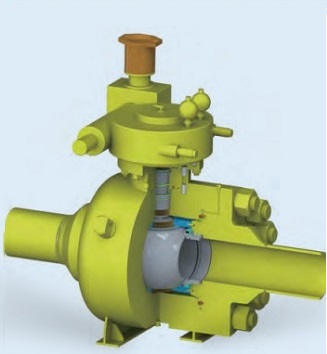

Subsea Ball Valve

• Design standard: API 6DSS or upon request
• Size: 2" - 48" (DN50- DN 1200)
• Class rating: Class 150 - 2500
• Design depth: upto 3000 meter
• Valve type: Side entry, top entry
• Actuator: Gearbox, hydraulic, etc. (ROV interface are all available)
• Application: Subsea manifold/PLEM/PLET/Subsea transport pipeline/other subsea production system

Subsea Gate Valve

• Design standard: API 17D, API 6A or upon request
• Size: 2" - 9" (DN50- DN 225)
• Class rating: upto 15,000PSI
• Design depth: upto 3000 meter
• Valve type: Slab gate
• Actuator: Linear drive device, hydraulic, etc. (ROV interface are all available)
• Application: Subsea manifold/PLEM/PLET/Subsea transport pipeline/other subsea production system
